JMMC - Architecture technique du logiciel ASPRO 2

Introduction

Cette page rassemble les diagrammes UML de description de l'architecture interne du logiciel Aspro 2 :

Classes : Model, Service, Swing GUI
Sequences : evènements

Ces documents correspondent à la version Aspro 2 0.7.7b - 20/01/2011

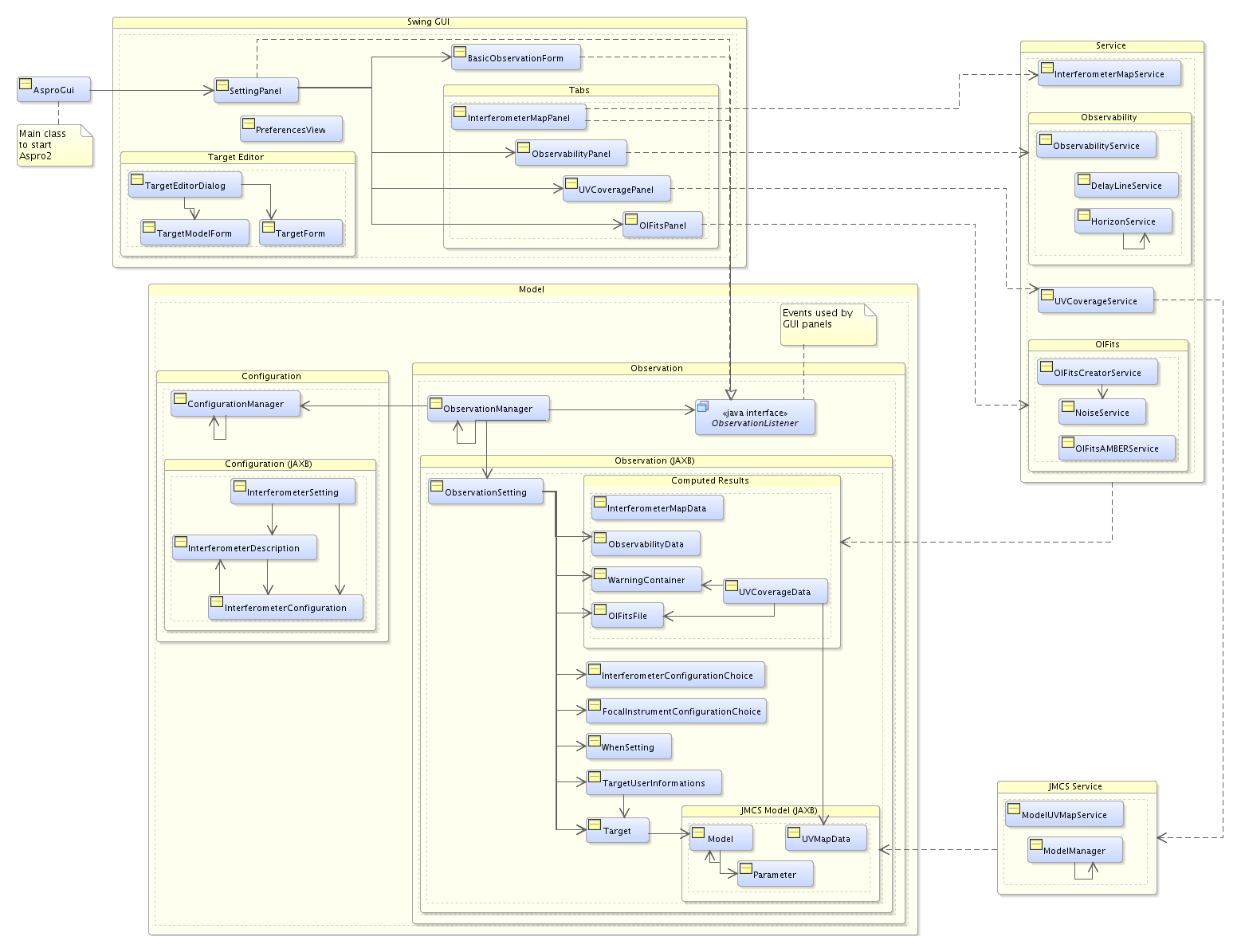

Architecture générale

Diagrammes de Classe

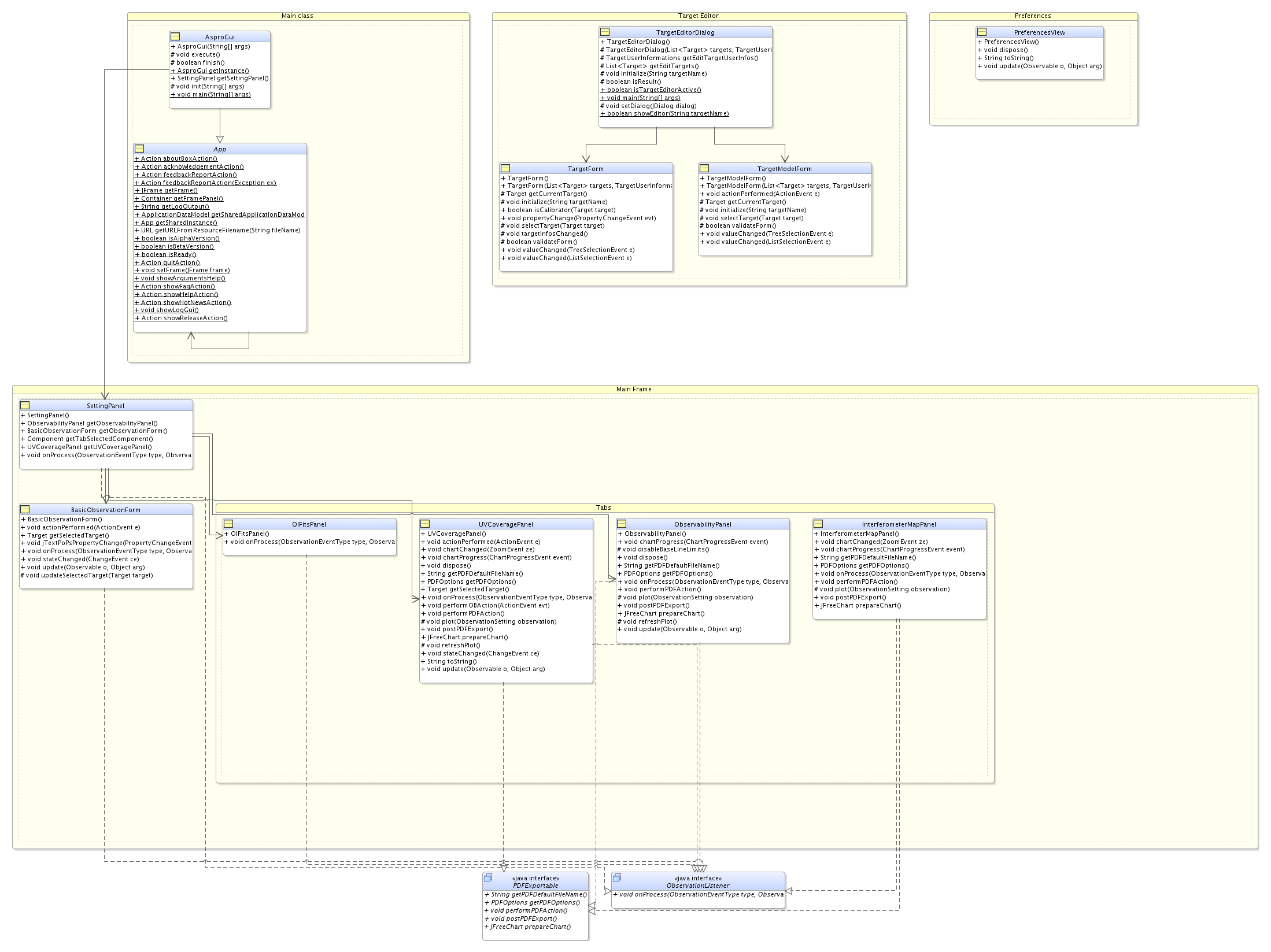

Swing GUI

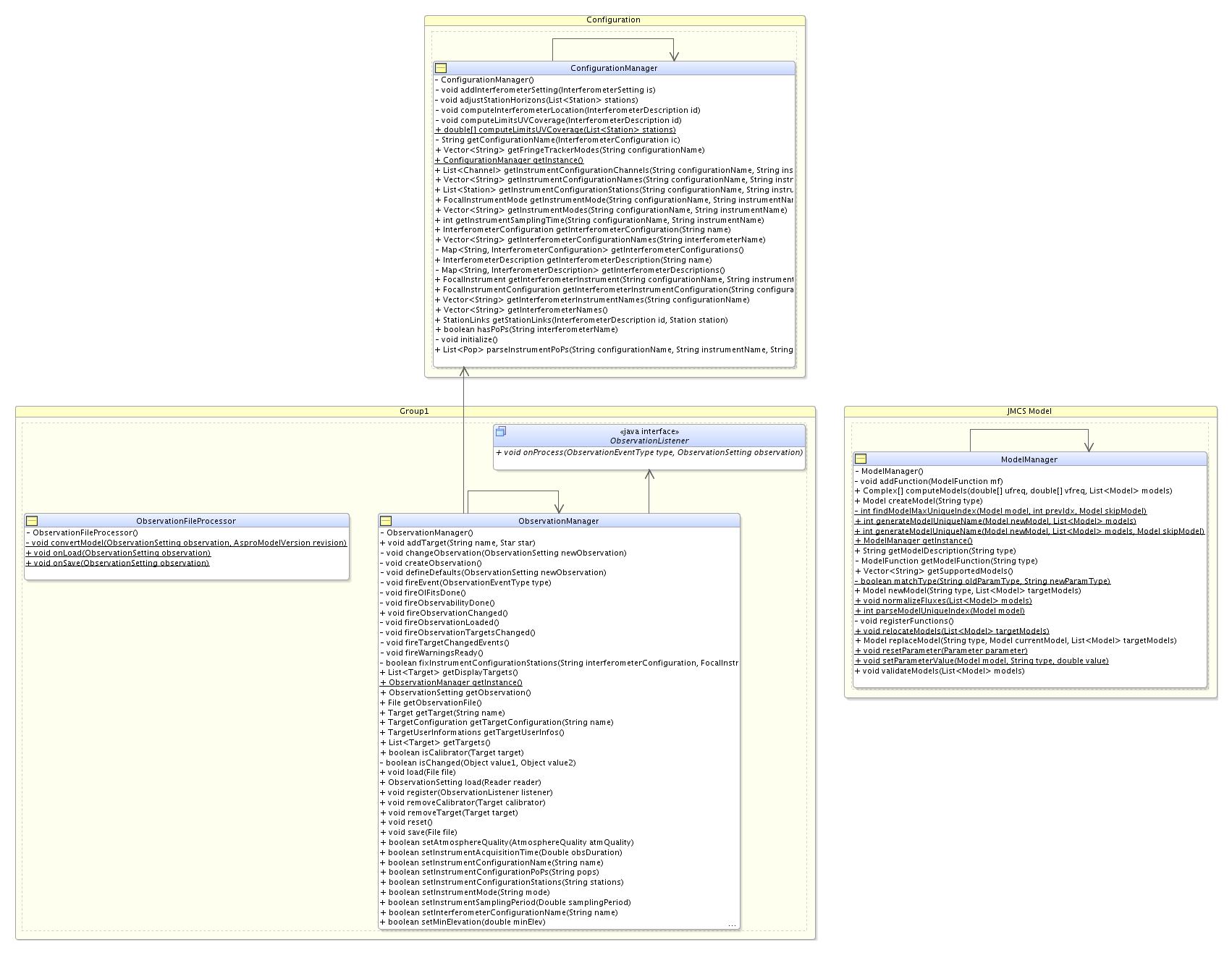

Model Managers

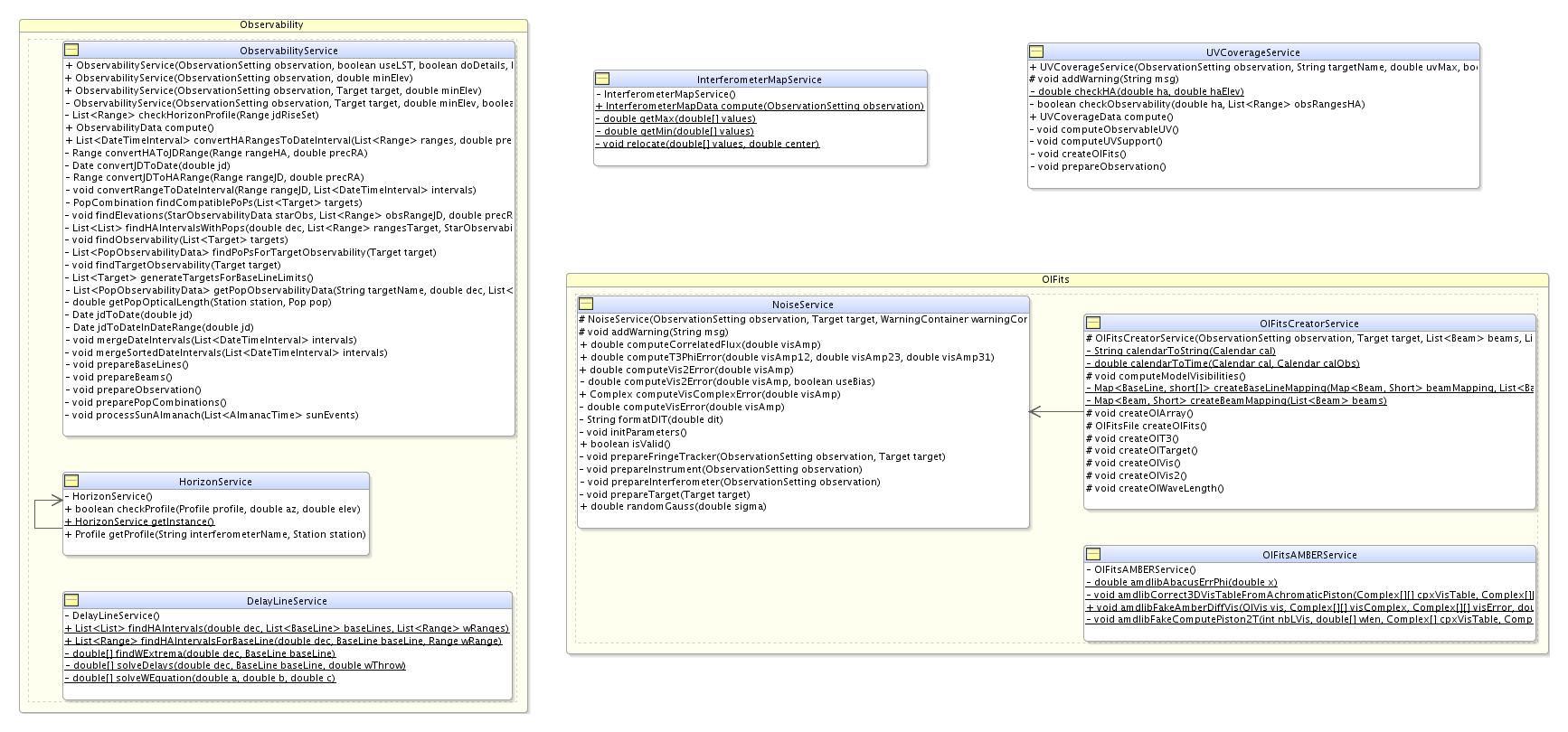

Services

Data Model

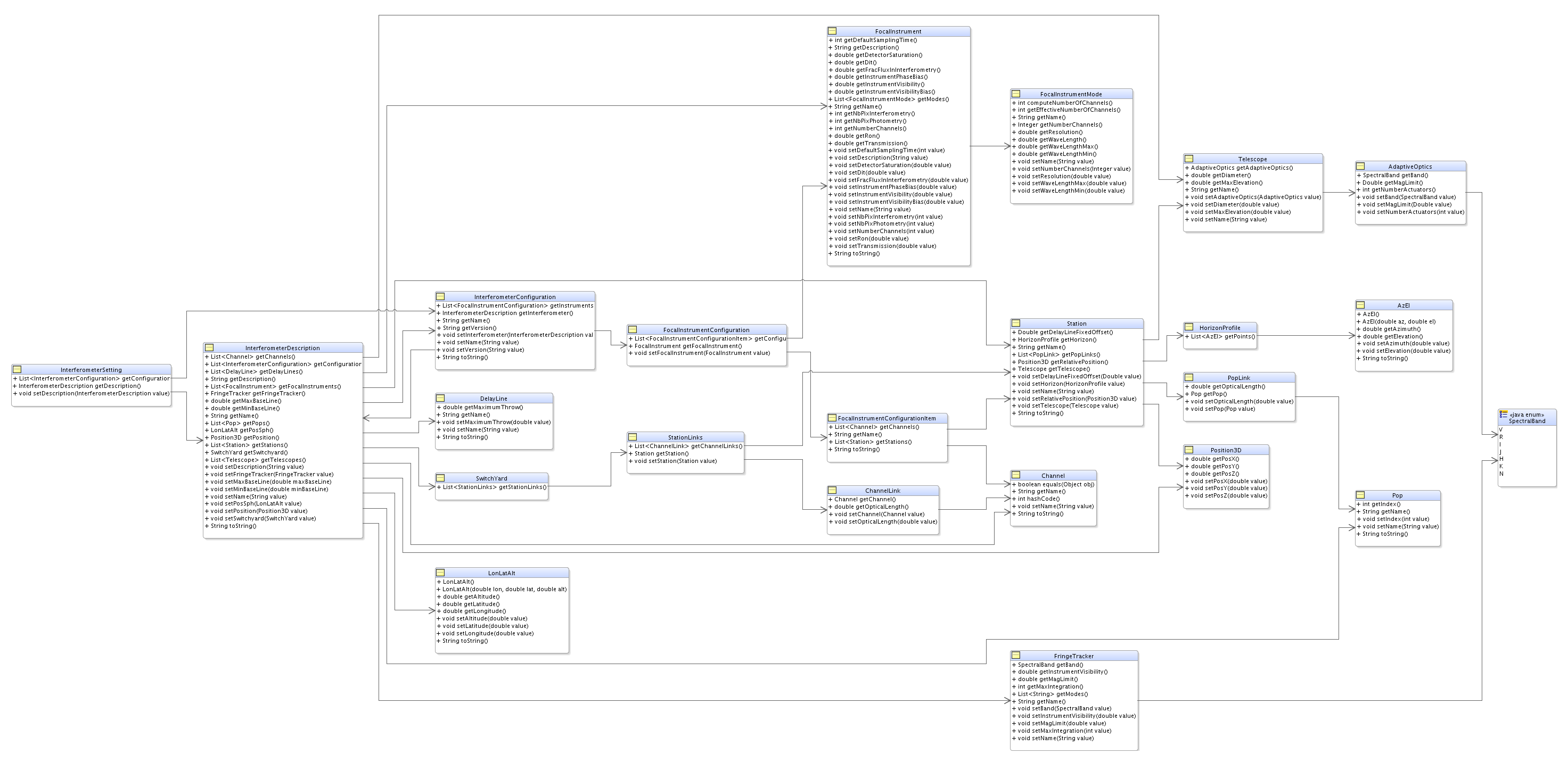

Configuration Model

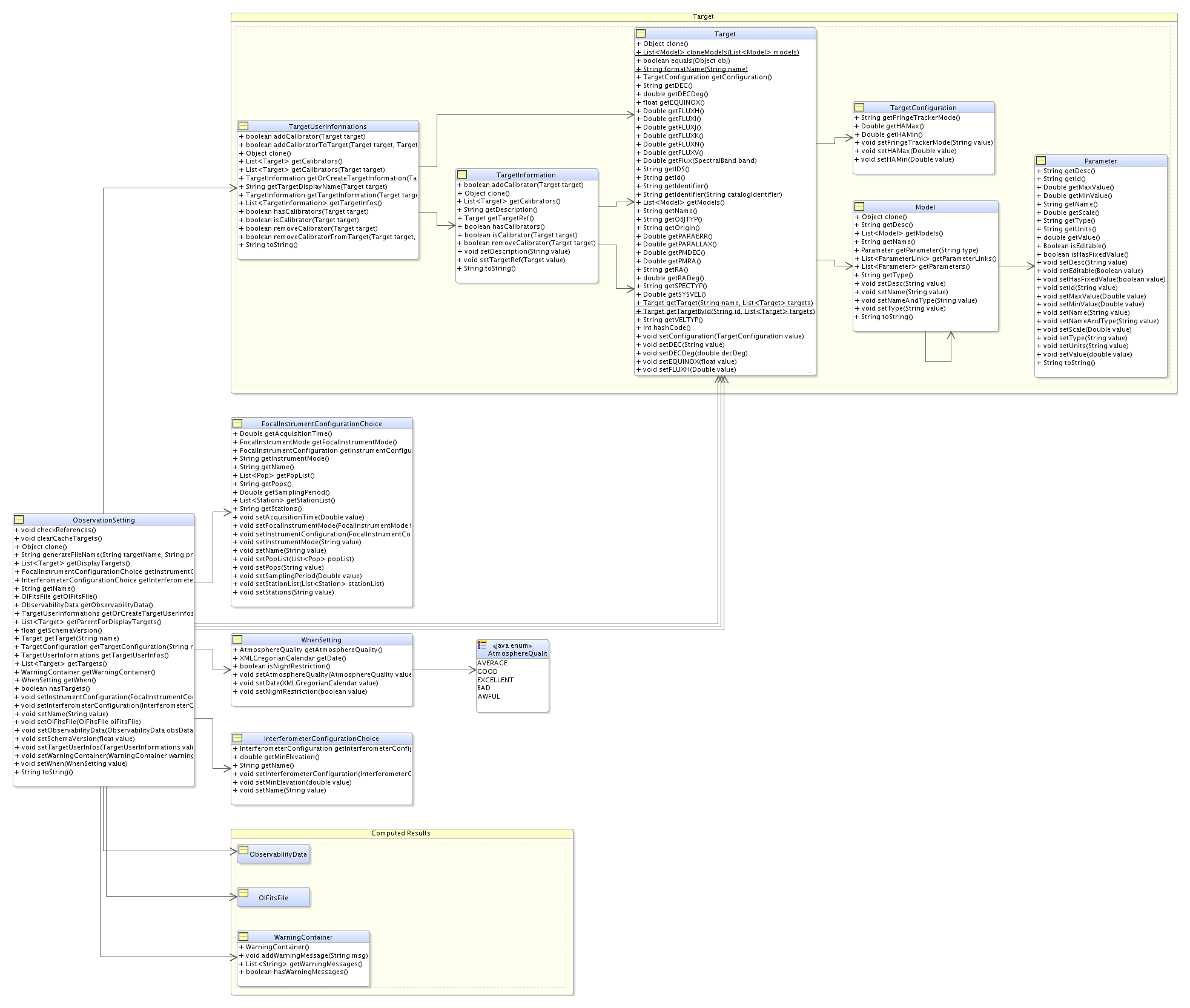

Observation Model

Computed Results

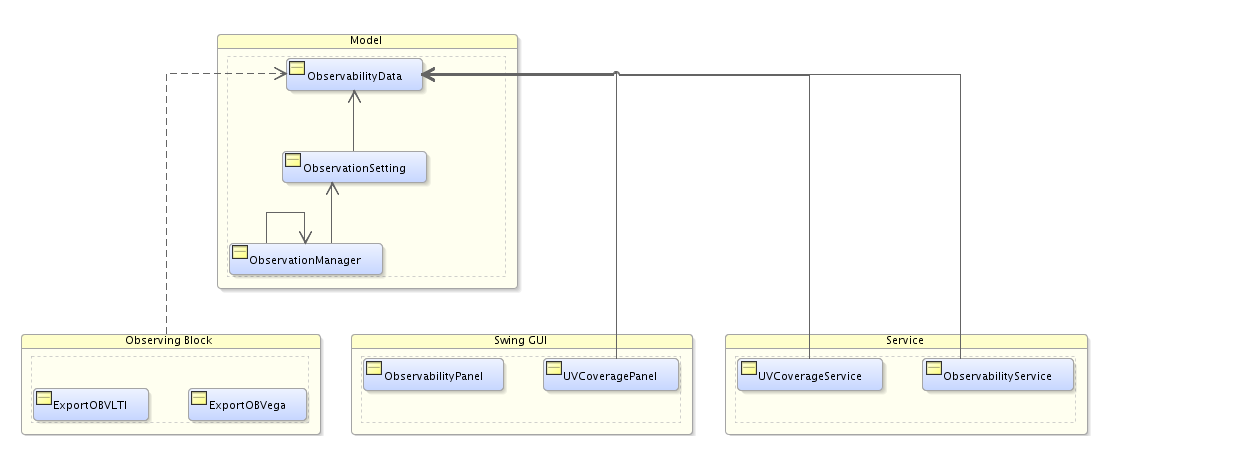

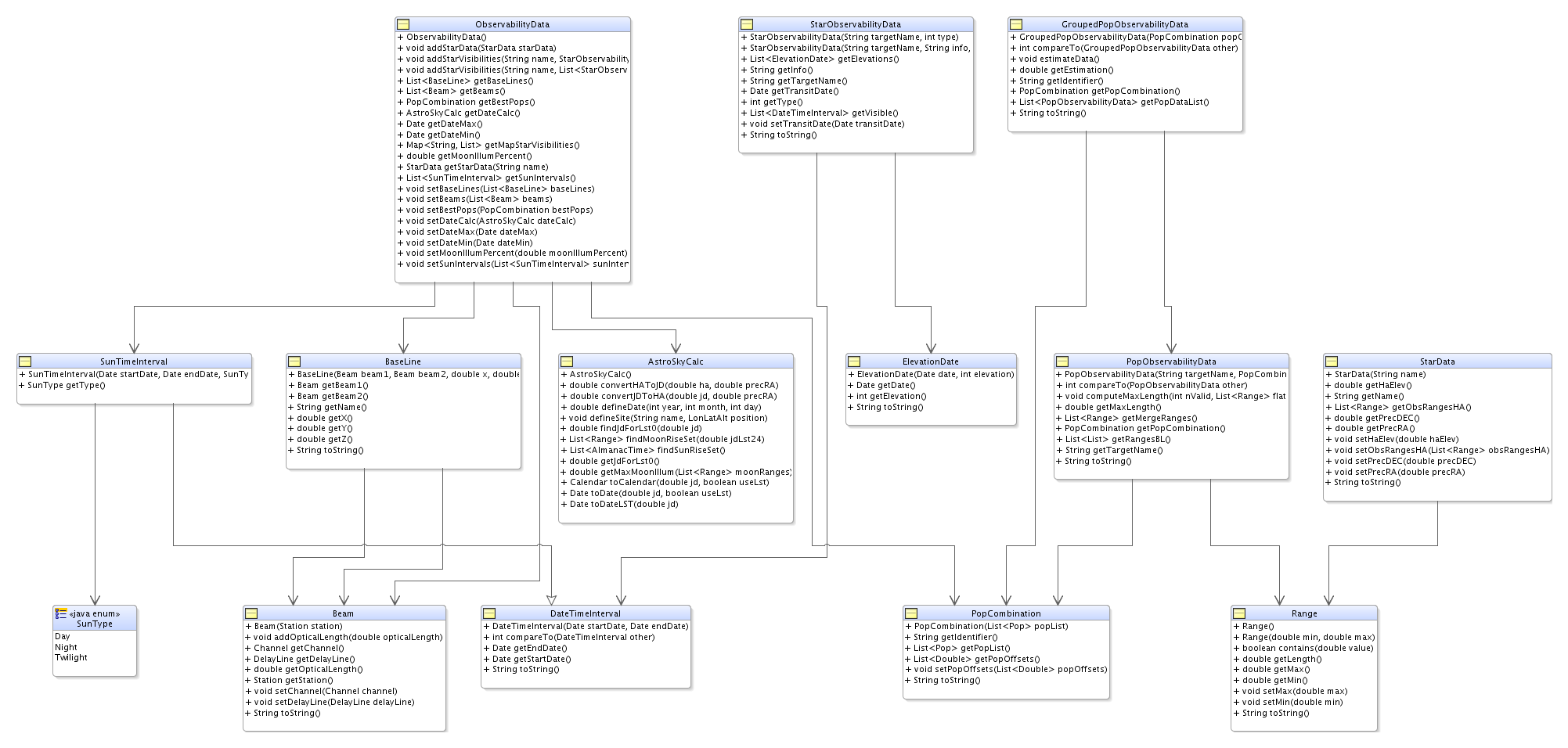

Observability Data

Usages

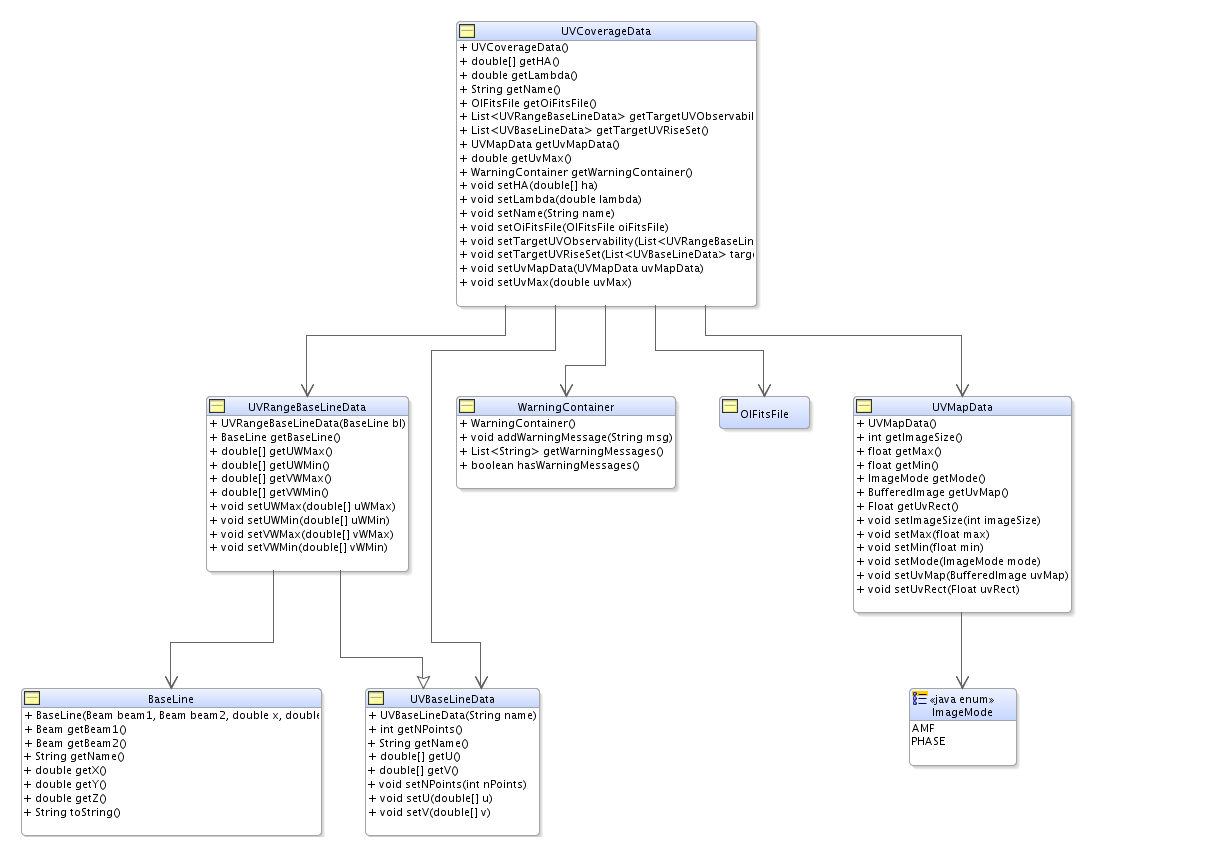

UVCoverage Data

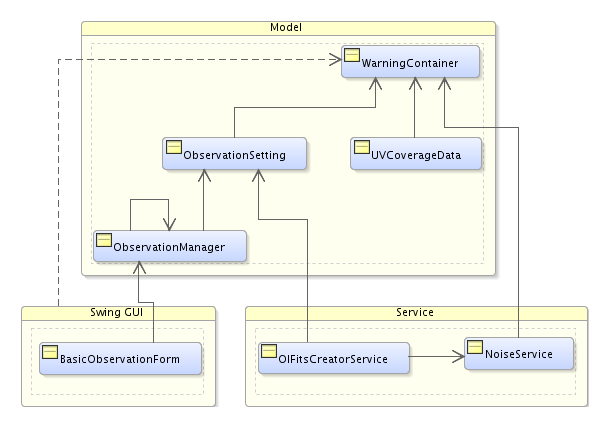

WarningContainer Usages

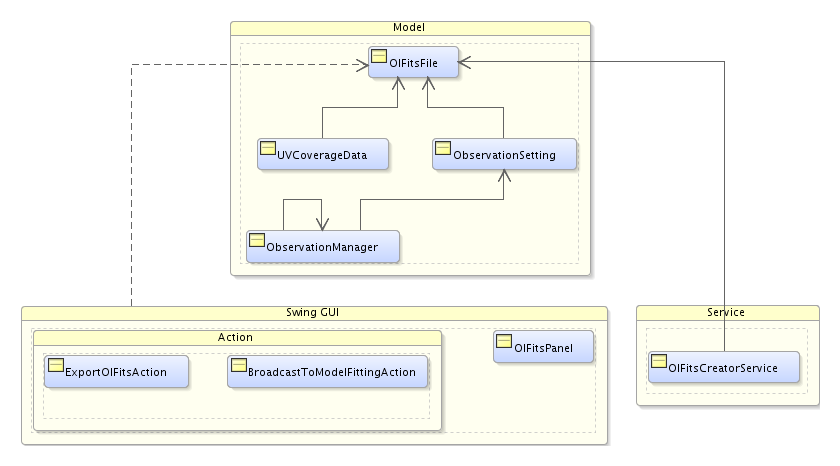

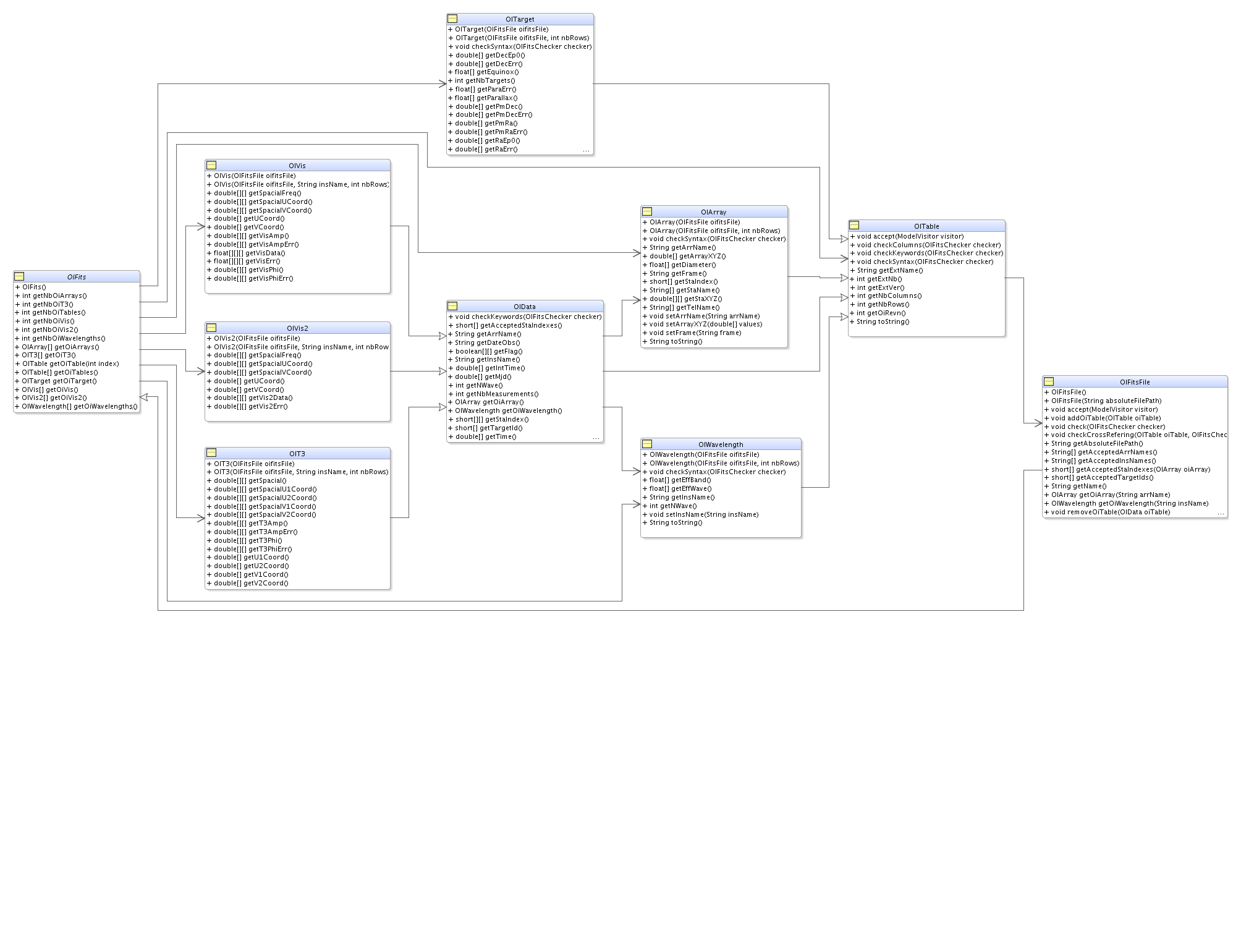

OIFits Data Model

Usages

Diagrammes de Séquence

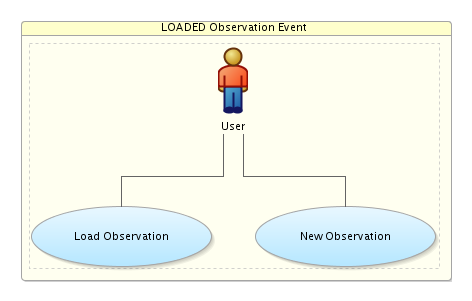

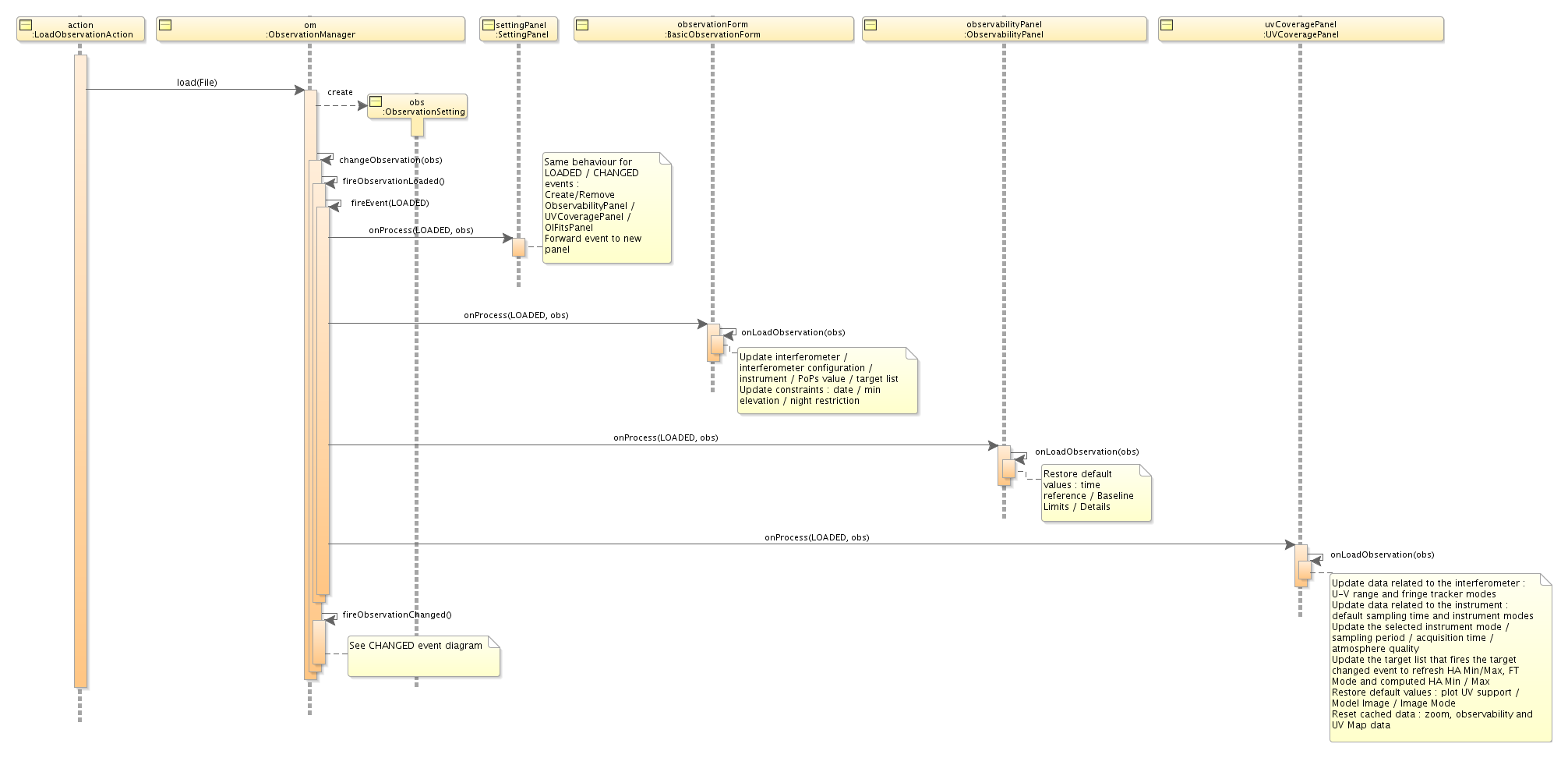

Load Event

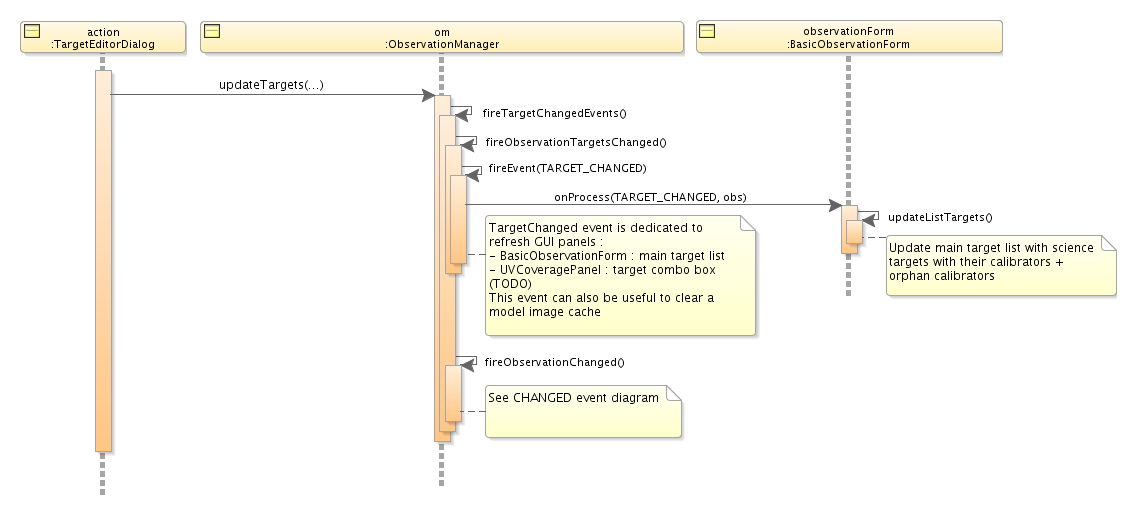

Target Changed Event

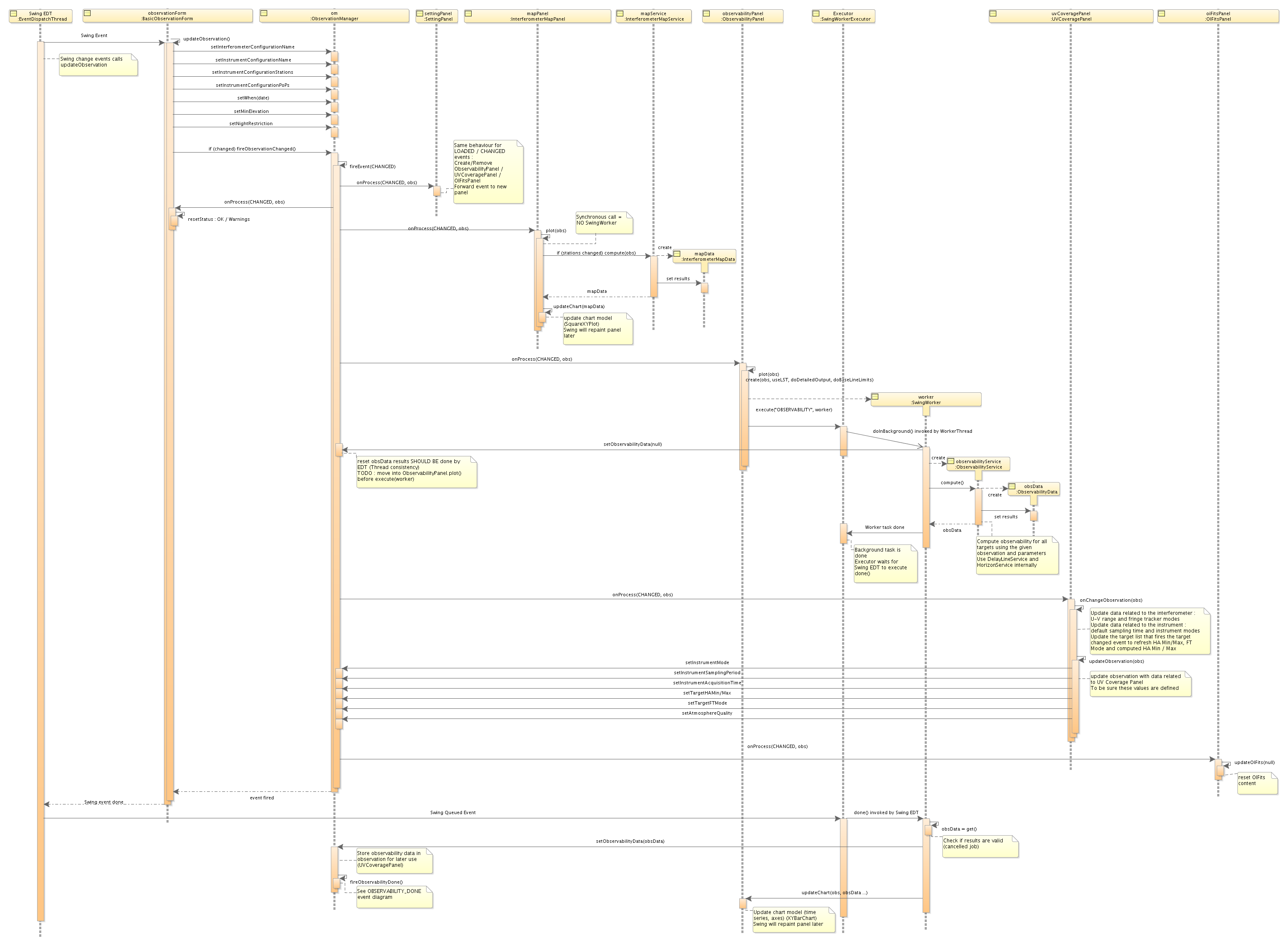

Changed Event

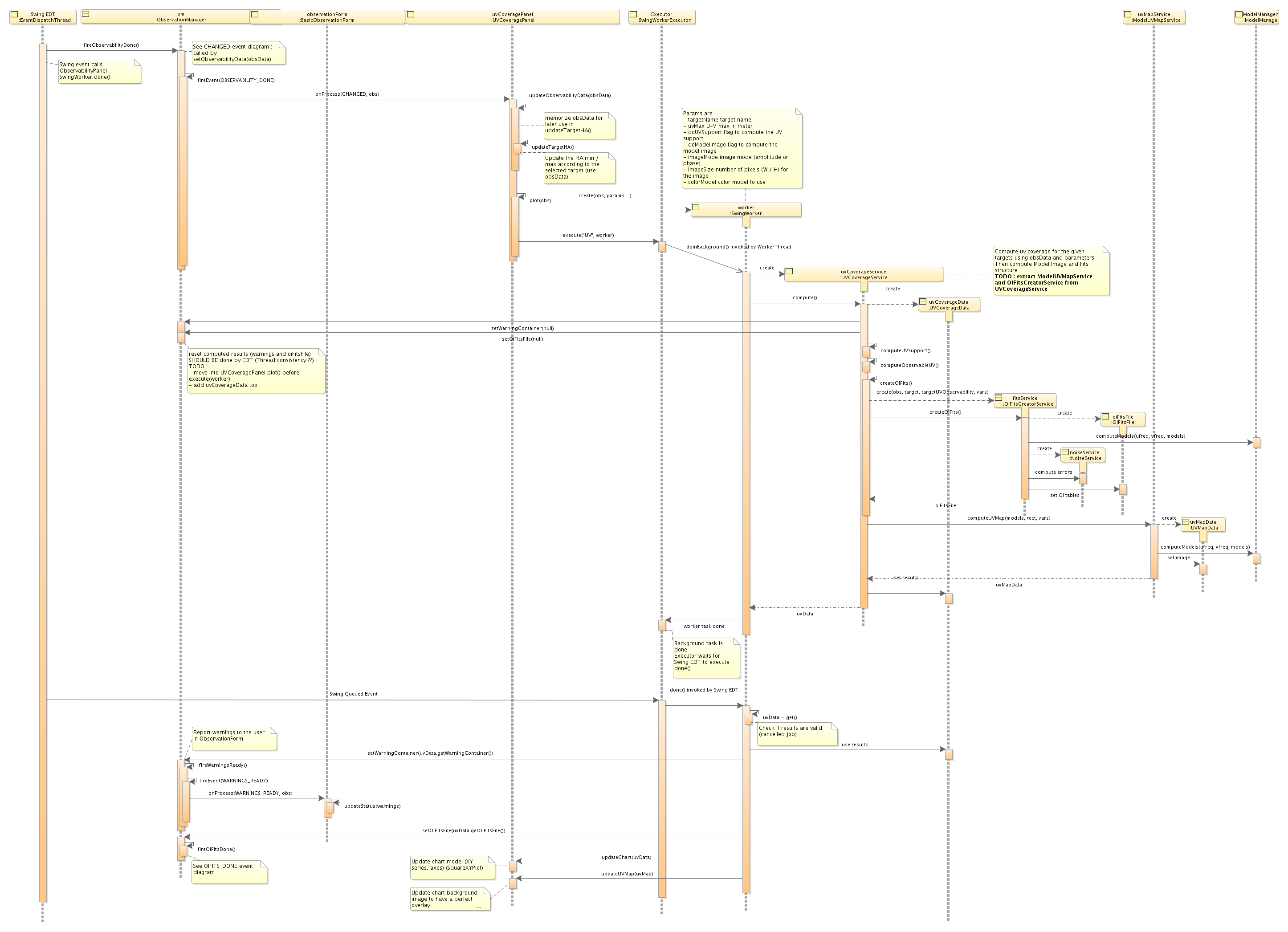

Observability Done Event

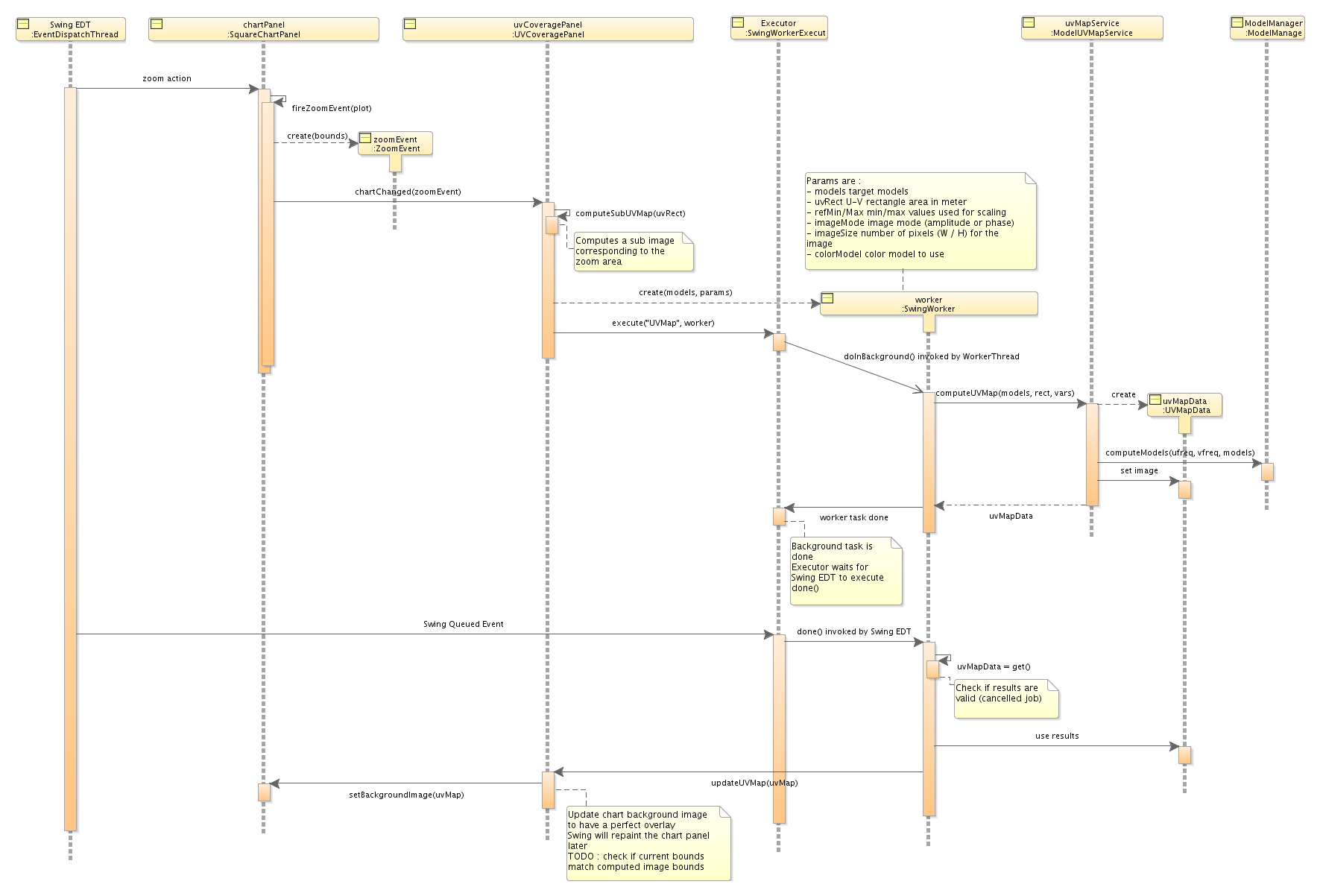

Zoom Event

-- LaurentBourges - 20 Jan 2011

Attachments

Topic attachments
I	Attachment	History	Action	Size	Date	Who	Comment

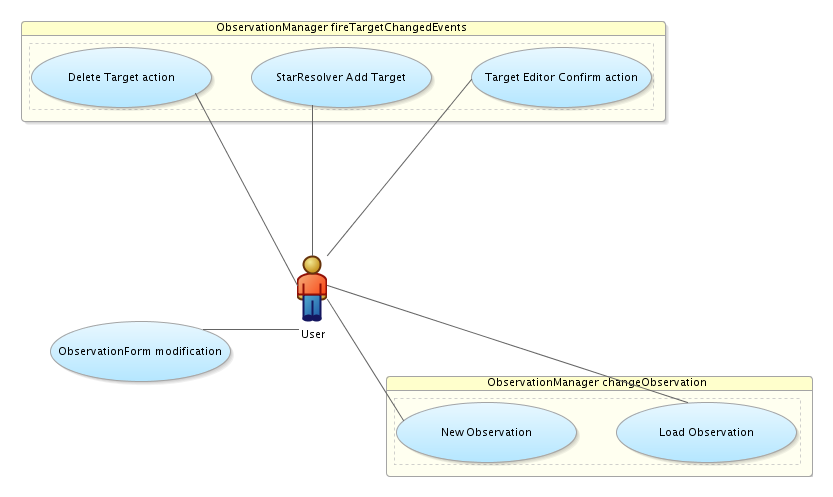

png	Changed.png	r1	manage	31.7 K	2011-01-20 - 12:41	LaurentBourges	Changed Use Case
png	Changed_Event.png	r1	manage	228.5 K	2011-01-20 - 12:41	LaurentBourges	Changed Event Sequence diagram
png	Configuration.png	r1	manage	212.3 K	2011-01-20 - 10:27	LaurentBourges	Configuration Model
png	Load.png	r1	manage	11.2 K	2011-01-20 - 12:40	LaurentBourges	Load Use Case
png	Load_Event.png	r1	manage	86.2 K	2011-01-20 - 12:41	LaurentBourges	Load Event Sequence diagram
png	Model_Managers.png	r1	manage	129.1 K	2011-01-20 - 10:26	LaurentBourges	Model Managers
png	OIFits.png	r1	manage	138.3 K	2011-01-20 - 12:37	LaurentBourges	OIFits Model
png	OIFitsFile.png	r1	manage	20.2 K	2011-01-20 - 10:30	LaurentBourges	OIFitsFile Usages
png	ObsData.png	r1	manage	21.5 K	2011-01-20 - 10:29	LaurentBourges	Observability Data Usages
png	ObsDone_Event.png	r1	manage	213.9 K	2011-01-20 - 12:44	LaurentBourges	Observability Done Event Sequence diagram
png	ObservabilityData.png	r1	manage	106.2 K	2011-01-20 - 10:28	LaurentBourges	Observability Data
png	Observation.png	r1	manage	182.3 K	2011-01-20 - 10:27	LaurentBourges	Observation Model
png	OverView.png	r1	manage	115.6 K	2011-01-20 - 10:20	LaurentBourges	architecture générale
png	Services.png	r1	manage	114.5 K	2011-01-20 - 10:26	LaurentBourges	Services
png	Swing_GUI.png	r1	manage	157.7 K	2011-01-20 - 10:26	LaurentBourges	Swing GUI
png	TargetChanged_Event.png	r1	manage	33.7 K	2011-01-20 - 12:43	LaurentBourges	Target Changed Event Sequence diagram
png	UVCoverageData.png	r1	manage	61.8 K	2011-01-20 - 10:28	LaurentBourges	UVCoverage Data
png	UVMap_ZoomEvent.png	r1	manage	90.2 K	2011-01-20 - 12:44	LaurentBourges	Zoom Event Sequence diagram
png	WarningContainer.png	r1	manage	17.1 K	2011-01-20 - 10:29	LaurentBourges	WarningContainer Usages
